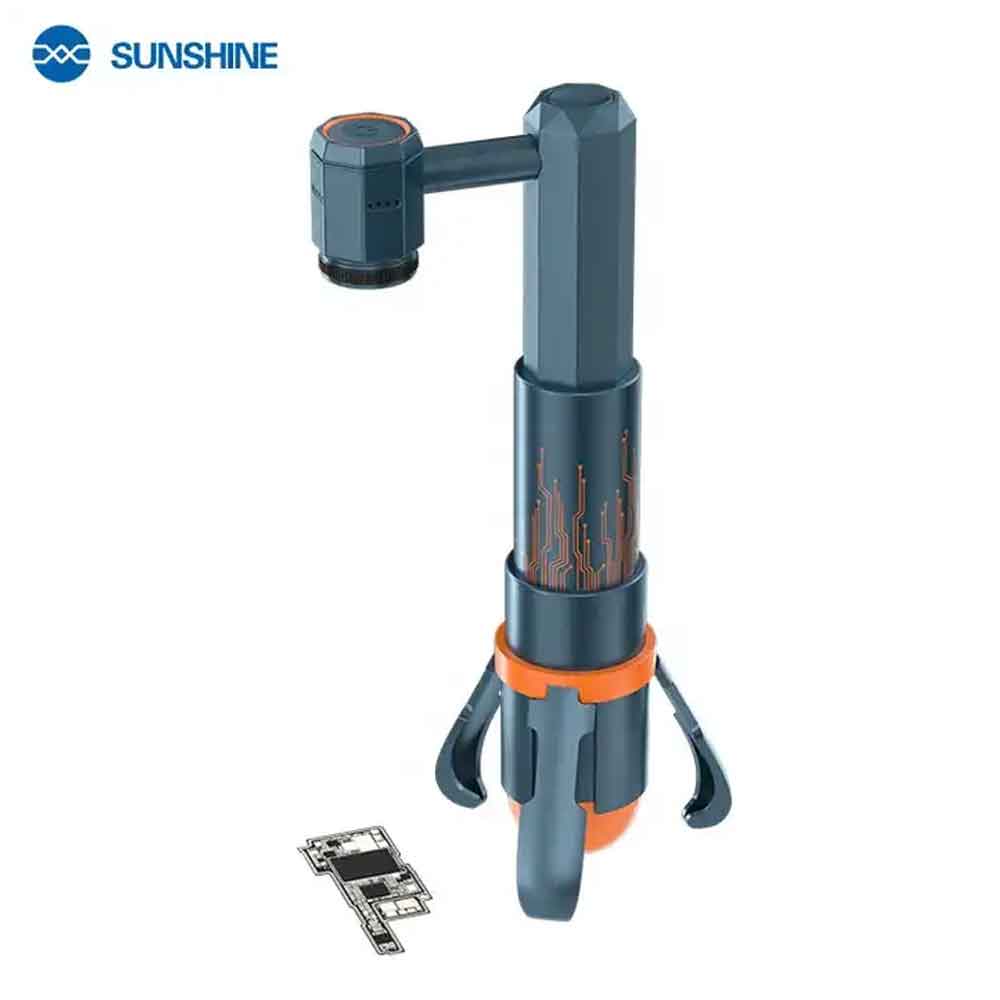

Sunshine TB-03S Detachable HD Infrared Rapid Diagnosis Instrument for PCB Circuit Short
Features:-
TB-03S infrared rapid thermal camera supports multi-platform client connections such as iPhone mobile phones, Android mobile phones, and laptops
The infrared lens is detachable and can be installed on the microscope through a special bracket
The bracket can be flexibly stretched to adjust the height, which is convenient for storage, comprehensively improves the user experience, and meets the needs of different scenarios
High-definition thermal imaging / multi-platform support / detachable infrared lens / adjustable bracket
It is a single-light infrared thermal imaging detection tool suitable for the maintenance of mobile phone motherboards
It can quickly locate PCB short circuit and leakage fault components, supports multi-platform use, and can efficiently solve the problems of low efficiency and difficult operation of traditional leakage detection
256*192 high-definition thermal imaging, clearer details, support one-key quick search function, quickly and accurately locate the position of high-temperature components
Switch to the “one-button quick diagnosis” mode to efficiently solve the problems of low efficiency and difficult operation of traditional leakage detection. Even at the milliampere level, it can detect quickly and accurately, and the operation is convenient and fast
Compatible with multiple operating systems, with WIFI function, it supports multi-platform client connections such as IP mobile phones, Android mobile phones, and laptops
The infrared lens is detachable and can be installed on the microscope through a special bracket, which is easy to operate and multi-purpose in one machine
Flexible telescopic adjustment, portable, inspired by the principles of rocket design Our products provide an unrivaled user experience; the flexible foldable stand can be used in any situation
Detachable infrared lens, compact structure, foldable design for easy storage
Specification:-
Brand: SUNSHINE
Product Name: Infrared rapid thermal camera
Model: TB-03S
Net Weight: ≈265g
Product Size: 116*52*150mm
Package Size: 190*152*75mm
Detector Type: Uncooled Vanadium Oxide (VOx) Detectors
Resolution: 256*192
Wavelength Range: 7.5-13.5μm
Camera Angle: 25° * 18°
Display Mode: Visible Light/Thermal Imaging/Quick Check
Connection Method: Type-C
Image Storage Format: JPG
Input Supply Voltage: 5V DC
Power Consumption: 2.5W
Storage Temperature Range: -20~60℃
Operating Range: 3·45℃
Humidity: 95% relative humidity
Temperature Measurement Distance: 5~25cm
Temperature Measurement Accuracy: ±5℃ / ±5% (Max)
Temperature Range: -20~550°C
Install: Plug and play, no installation required
Package includes:
1 x Host
1 x Type-C Power Cord
